What is the center line of a complex polygon? New approach.

Posted by smathermather on January 17, 2012

Today, I just show pictures of my process for filtering the medial axis of extraneous elements. I’ll let the pics tell the story for now:

Original Geometry, with ST_Segmentize run to densify the vertices

Medial Axis (Calculated outside PostGIS... at this time)

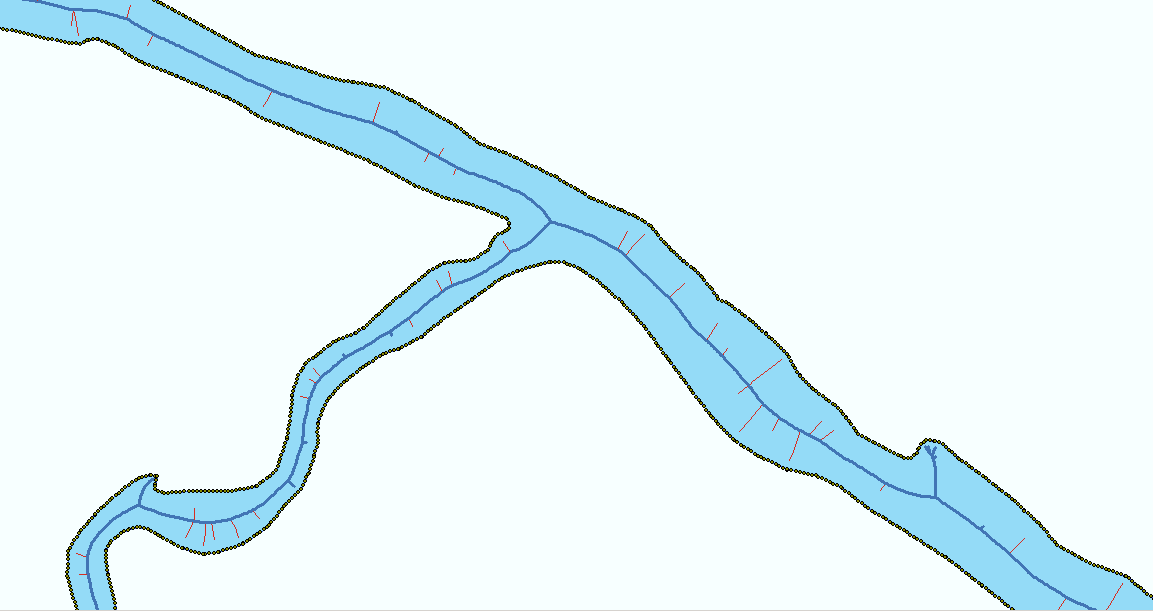

Density of vertex points in Medial Axis-- proportional to how closely it matches the direction of the local geometry

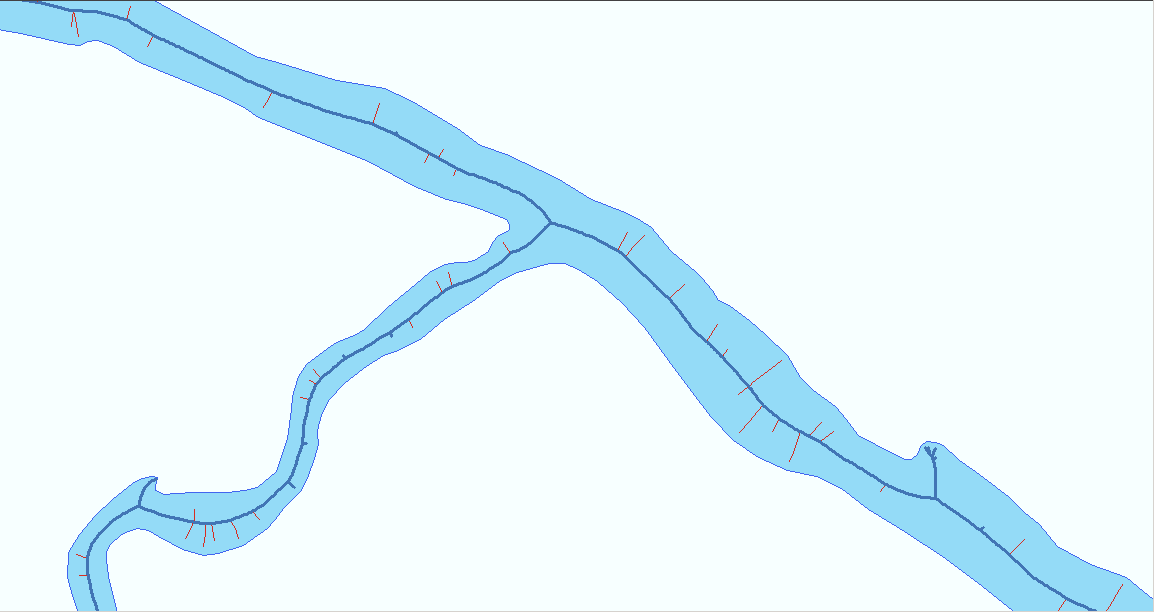

Medial Axis filtered based on density of vertices. Red segments are the removed ones, blue are the retained. It's not perfect, but it's very cheap computationally... .

scale axis transform 3

scale axis transform 2
scale axis transform 1

previous post

original

3 Responses to “What is the center line of a complex polygon? New approach.”
