Tracing golden monkeys through time

My collegue TUYISINGIZE Deogratias (“Deo) and others at Dian Fossey Gorilla Fund International have been studying golden monkeys (Cercopithecus kandti) in Rwanda. Golden monkeys are an endangered monkey along the Albertine Rift (including the Virungas, host to the endangered mountain gorilla). They are also cute as can be, but more on that another time.

Golden monkey (Cercopithecus kandti) head.jpg

Deo has been leading efforts to track the golden monkeys in several locations across their range, observing their habits. Among the data gathered is the location of the groups of the monkeys as they move through their range. One element we want to understand from these data are how much does each group move per day.

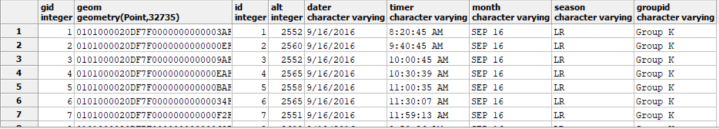

The raw data look something like this:


So we tweak things a bit to get ids in order of date and time, and also prep the data so that the date and time are proper types in PostgreSQL:

DROP TABLE IF EXISTS goldenmonkeys_sorted;
CREATE TABLE goldenmonkeys_sorted AS
    WITH nodate AS (
        SELECT gid, geom, id, lat, lon, alt, dater || ' ' || timer AS dater, month AS monther, season, groupid FROM hr_g_all
    , sorted AS (
	SELECT gid, geom, id, lat, lon, alt, dater::TIMESTAMP WITH TIME ZONE AS datetimer, monther, season, groupid FROM nodate
		ORDER BY groupid, datetimer
    SELECT gid AS id, ROW_NUMBER() OVER( PARTITION BY gid) AS gid, datetimer, date(datetimer) AS dater, monther, season, groupid, geom FROM sorted
        ORDER BY gid

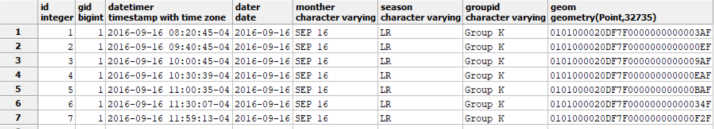

Resulting in the following:

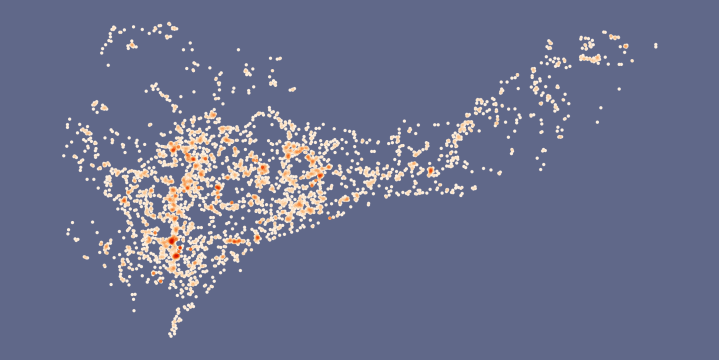

Golden Monkey Ranging in Gishwati National Park

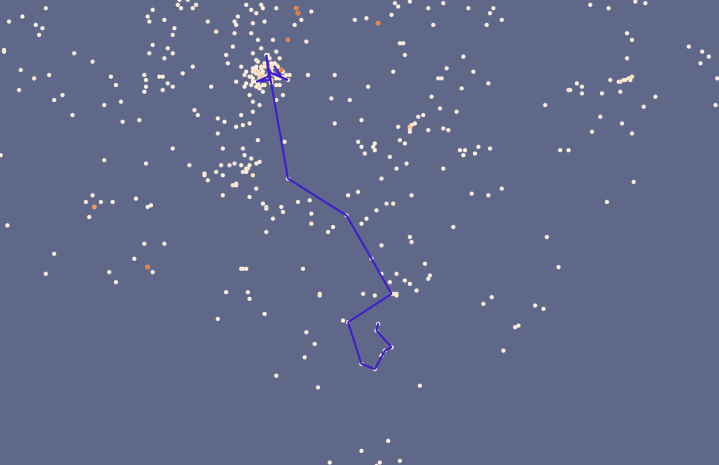

Ok. Now we want to turn this into traces of the movements of the monkeys everyday. Something like this:


But for every trace, for every day for each group.

We will create a function that leverages WITH RECURSIVE. We’ve seen this before. WITH RECURSIVE allows us to take each record in sequence and perform operations with the previous record, in this case calculating travel time, travel distance, and combining the individual points into a single line with ST_MakeLine.

CREATE OR REPLACE FUNCTION goldenmonkey_time (date, text)
RETURNS TABLE(dater date, monther text, traveltime interval, distance float, geom geometry) AS $$
SELECT gid, dater, monther, datetimer, datetimer (SELECT min(datetimer) FROM goldenmonkeys_sorted WHERE dater = $1 AND groupid = $2) AS timediff, 0::float AS distance, geom
FROM goldenmonkeys_sorted WHERE dater = $1 AND groupid = $2
SELECT n.gid, w.dater, w.monther, w.datetimer, n.datetimer w.datetimer AS timediff, ST_Distance(n.geom, w.geom) AS distance, n.geom
FROM goldenmonkeys_sorted n, gtime w
WHERE w.dater = $1 AND n.gid::integer = w.gid::integer + 1
SELECT max(dater) AS dater, max(monther) AS monther, max(timediff) AS traveltime, ST_Length(ST_MakeLine(geom)) AS length, ST_MakeLine(geom) FROM gtime;

Now to use our function, we need a list of dates and groups so we can calculate this for each day:

WITH dategroup AS (
DISTINCT dater, groupid
goldenmonkeys_sorted ORDER by groupid, dater
SELECT groupid, (goldenmonkey_time(dater, groupid)).dater,
(goldenmonkey_time(dater, groupid)).monther,
(goldenmonkey_time(dater, groupid)).traveltime,
(goldenmonkey_time(dater, groupid)).distance,
(goldenmonkey_time(dater, groupid)).geom FROM dategroup
ORDER BY groupid, (goldenmonkey_time(dater, groupid)).dater;

view raw
hosted with ❤ by GitHub

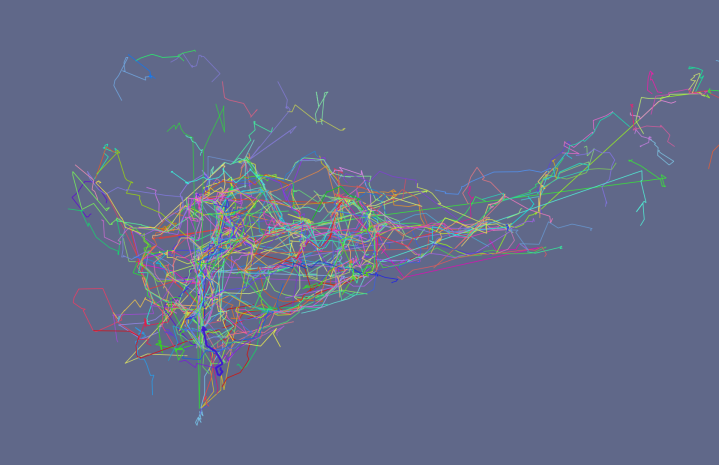

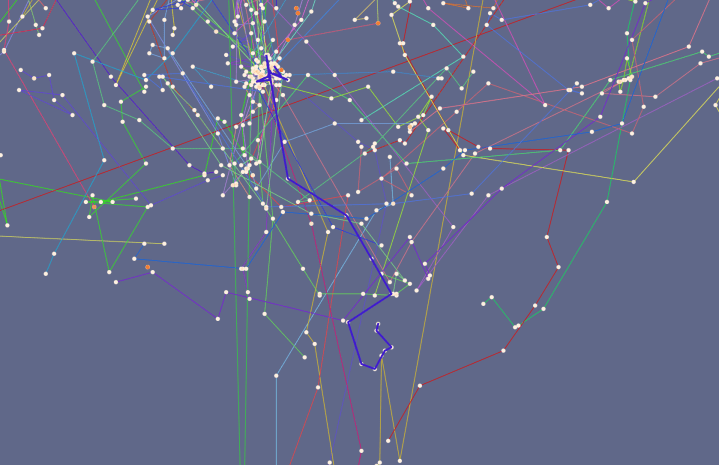

Now we have traces not just for one day and group, but all traces and groups:
