Plugin-free QGIS TMS tiles via GDAL

Posted by smathermather on July 31, 2014

Want to load your favorite tiles into QGIS? How about a plugin-free QGIS TMS tiles via GDAL:

http://www.3liz.com/blog/rldhont/index.php?post/2012/07/17/OpenStreetMap-Tiles-in-QGIS

Really awesome… .

Needs but one change: epsg:900913 should be epsg:3857 or QGIS (GDAL?) throws an error. Presumably you could also define epsg:900913 in some config file, but barring that create an XML file as follows, and load as a raster in QGIS:

<GDAL_WMS>
    <Service name="TMS">
        <ServerUrl>http://maps1.clemetparks.com/tilestache/tilestache.cgi/basemap/${z}/${x}/${y}.jpg</ServerUrl>
    </Service>
    <DataWindow>
        <UpperLeftX>-20037508.34</UpperLeftX>
        <UpperLeftY>20037508.34</UpperLeftY>
        <LowerRightX>20037508.34</LowerRightX>
        <LowerRightY>-20037508.34</LowerRightY>
        <TileLevel>18</TileLevel>
        <TileCountX>1</TileCountX>
        <TileCountY>1</TileCountY>
        <YOrigin>top</YOrigin>
    </DataWindow>
    <Projection>EPSG:3857</Projection>
    <BlockSizeX>256</BlockSizeX>
    <BlockSizeY>256</BlockSizeY>
    <BandsCount>3</BandsCount>
    <Cache />
</GDAL_WMS>

Now I can use my pretty tilestache maps _everywhere!_:

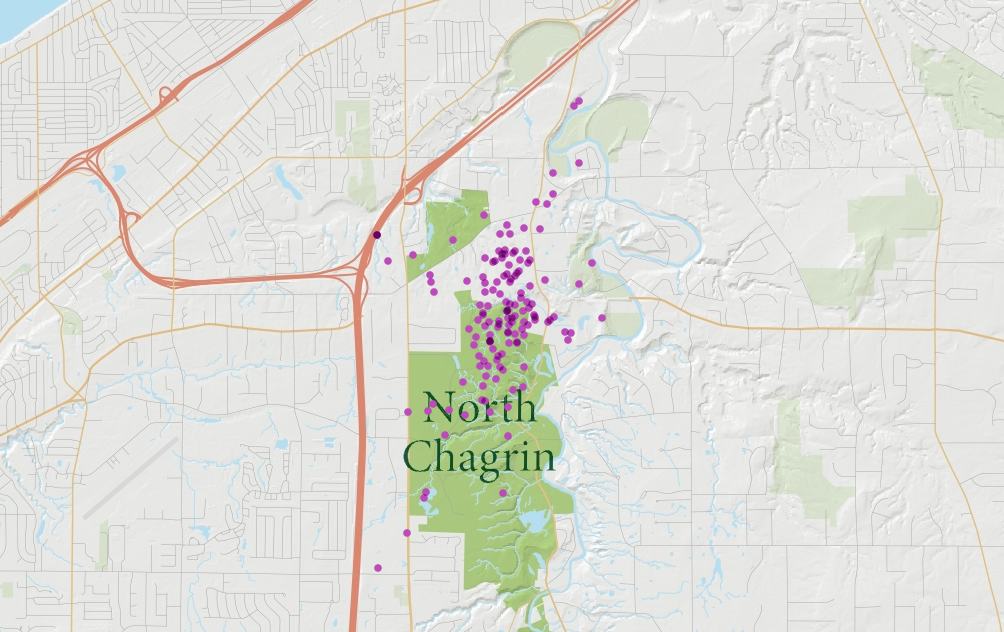

Image of coyote points overlayed on tilestache rendered hillshade map

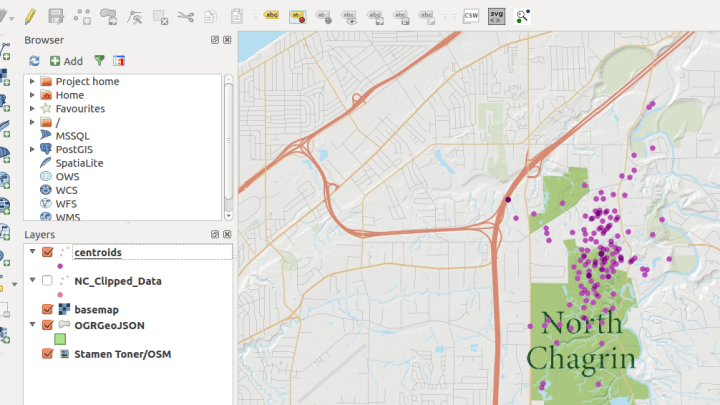

Screenshot of map from postgis

edit: forgot the hattip for the lead on this, Thomas gratier: @ThomasG77
