Taking Slices from ~~LiDAR~~ OpenDroneMap data: Part X

Posted by smathermather on February 23, 2017

Part 10 of N… , wait. This is a lie. This post is actually about optical drone data, not LiDAR data. This is about next phase features fro OpenDroneMap — automated and semiautomation of the point clouds, creation of DTMs and other fun such stuff.

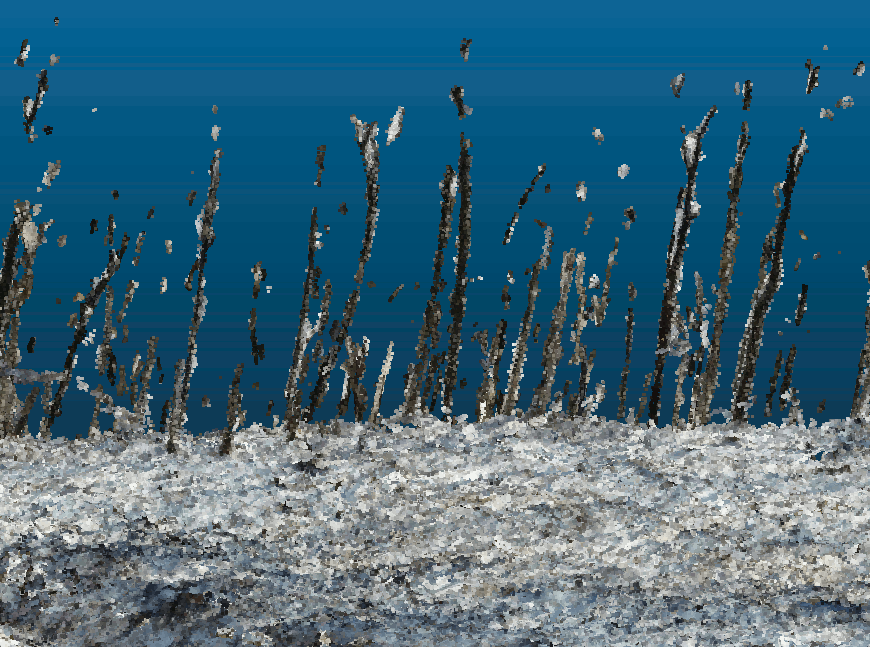

To date, we’ve only extracted Digital Surface Models from ODM — the top surface of everything in the scene. As it is useful for hydrological modeling and other purposes to have a Digital Terrain Model estimated, we’ll be including PDAL’s Progressive Morphological Filter for the sake of DEM extraction. Here’s a small preview:

Posted in 3D, Docker, OpenDroneMap, PDAL | Tagged: , , | Leave a Comment »

Taking Slices from LiDAR data: Part IX

Posted by smathermather on February 20, 2017

Part 9 of N… , see e.g. my previous post on the topic.

We’ve been working to reduce the effect of overlapping samples on statistics we run on LiDAR data, and to do so, we’ve been using PDAL’s filters.sample approach. One catch: this handles the horizontal sampling problem well, but we might want to intentionally retain samples from high locations — after all, I want to see the trees for the forest and vice versa. So, it might behoove us to sample within each of our desired height classes to retain as much vertical information as possible.

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | Leave a Comment »

Taking Slices from LiDAR data: Part VIII

Posted by smathermather on February 18, 2017

Part 8 of N… , see e.g. my previous post on the topic.

I didn’t think my explanation of sampling problems with LiDAR data in my previous post was adequate. Here are a couple more figures for clarification.

We can take this dataset over trees, water, fences, and buildings that is heavily sampled in some areas and sparsely sampled in others and use PDAL’s filters.sample (Poisson dart-throwing) to create an evenly sampled version of the dataset.

Figure showing overlap of LiDAR scanlines

Figure showing overlap of LiDAR scanlines

Figure showing data resampled for eveness

Figure showing data resampled for evenness

An extra special thanks to the PDAL team for not only building such cool software, but being so responsive to questions!

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | Leave a Comment »

Taking Slices from LiDAR data: Part VII

Posted by smathermather on February 15, 2017

Part 7 of N… , see e.g. my previous post on the topic.

More work on taking LiDAR slices. This time, the blog post is all about data preparation. LiDAR data, in its raw form, often has scan line effects when we look at density of points.

lidar_flightlines

This can affect statistics we are running, as our sampling effort is not even. To ameliorate this affect a bit, we can decimate our point cloud before doing further work with it. In PDAL, we have three choices for decimation: filters.decimation, which samples every Nth point from the point cloud; filters.voxelgrid, which does volumetric pixel based resampling; and filters.sample or “Poisson sampling via ‘Dart Throwing'”.

filters.decimation won’t help us with the above problem. Voxelgrid sampling could help, but it’s very regular, so I reject this on beauty grounds alone. This leaves filters.sample.

The nice thing about both the voxelgrid and the poisson sampling is that they retain much of the shape of the point cloud while down sampling the data:

subsample-ex1

subsample-ex2

We will execute the poisson sampling in PDAL. As many things in PDAL are best done with a (json) pipeline file, we construct a pipeline file describing the filtering we want to do, and then call that from the command line:

We can slice our data up similar to previous posts, and then look at the point density per slice. R-code for doing this forthcoming (thanks to Chris Tracey at Western Pennsylvania Conservancy and the LidR project), but below is a graphic as a teaser. For the record, we will probably pursue a fully PDAL solution in the end, but really interesting results in the interim:


More to come. Stay tuned.

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | 2 Comments »

Finding peace, finding ground: Drone flights for hydrologic modeling

Posted by smathermather on October 15, 2016

Š-L-M

Lately I’ve been helping with project to predict flooding in Dar es Salaam (“Home of Peace”), the capital former capital of Tanzania in East Africa. This is a really fun project for me, in part because most of the hard work is already done, but there still remain some tricky problems to solve.

This project is a part of Dar Ramani Huria, a “community-based mapping project… training university students and local community members to create highly accurate maps of the most flood-prone areas of the city using OpenStreetMap.”

Dar es Salaam (or Dar for short), is the fastest growing city in Africa, making the identification of flood prone zones during rainy seasons absolutely critical. The Ramani Huria crew has mapped the streams, ditches, and other waterways of Dar, as well as flown imagery (via drone) over much of the city critical parts of the city.

screen-shot-2016-10-15-at-3-01-04-pm

Problem Space:

The results are stunning, but using drone imagery and photogrammetric point clouds (instead of LiDAR) has it’s limitations.

One problem, that I’m not going to get into in any depth today, is the difficulty of conflating (vertically and horizontally) different datasets flown at different times with commodity GPS.

Another problem is the difficulty of turning photogrammetrically derived point clouds into Digital Terrain Models. There is proprietary software that does this well (e.g. LasTools and others), but we seek a free and open source alternative. Let’s visualize the problem. See below a photogrammetrically-derived point cloud (processed in Pix4D, visualized at https://plas.io):

screen-shot-2016-10-15-at-3-15-44-pm

We can directly turn this into a digital surface model (DSM):

screen-shot-2016-10-15-at-3-24-23-pm

5

We can see the underlying topography, but buildings and trees are much of the signal in the surface model. If we, for example, calculate height above the nearest stream as a proxy for flooding, we get a noisy result.

OSM to the Rescue

If you recall at the beginning of this post, I said this is “a really fun project for me” because “most of the hard work is already done”. Dar is a city with pretty much every building digitized. We can take advantage of this work to remove buildings from our point cloud. We’ll use the utilities associated with the Point Data Abstraction Layer (PDAL) library. Specifically, we’ll use PDAL’s ability to clip point cloud data with 2D OGR compatible geometries (a great tutorial on this here).

First thing we need to do is extract the buildings from OSM into shapefiles. For this, and easy way is to use Mapzen’s Metro Extracts:

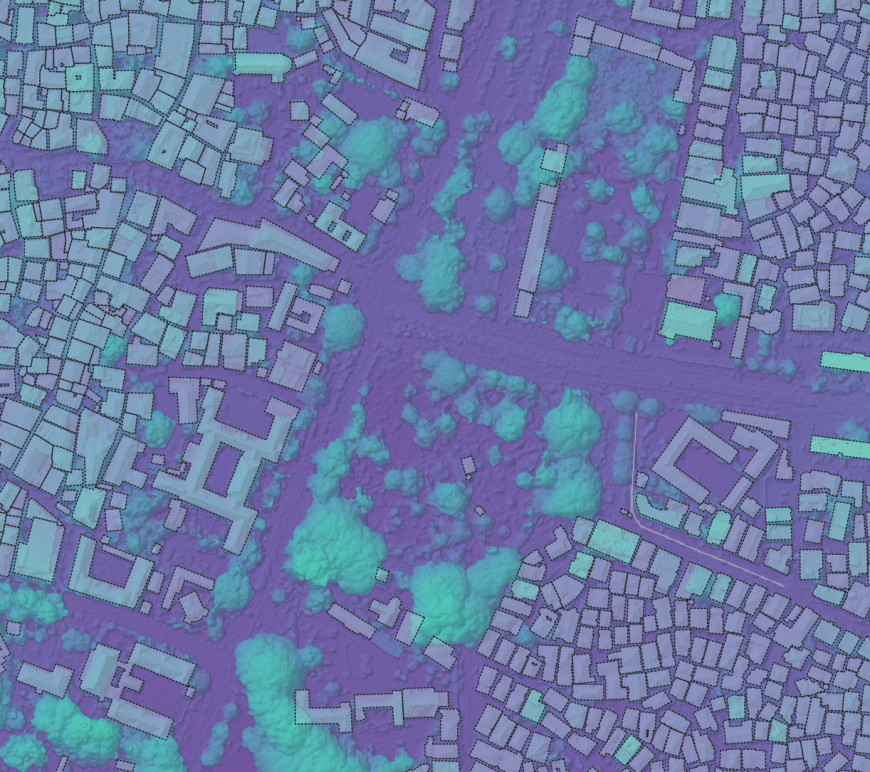

screen-shot-2016-10-15-at-3-58-35-pm

I chose Datasets grouped into individual layers by OpenStreetMap tags (IMPOSM) as this gives me the capacity to just choose “Buildings”. I loaded those buildings into a PostGIS database for the next steps. What I seek is a shapefile of all the areas which are not buildings, essentially from this:

building

To this:

no_building

For this we’ll need to use ST_Difference + ST_ConvexHull. ST_ConvexHull will create a shape of the extent of our data, and we’ll use ST_Difference to cookie-cutter out all the building footprints:

DROP TABLE IF EXISTS "salaam-buff-diff-split1";
CREATE TABLE "salaam-buff-diff-split1" AS
WITH subset AS (
	SELECT ST_Transform(geom, 32737) AS geom FROM "salaam-buildings" LIMIT 20000
	),
extent AS (
	SELECT ST_ConvexHull(ST_Union(geom)) AS geom FROM subset
	),
unioned AS (
	SELECT ST_Union(geom) AS geom FROM subset
	),
differenced AS (
	SELECT ST_Difference(a.geom, b.geom) AS geom FROM
	extent a, unioned b
	)
SELECT 1 AS id, geom FROM differenced;

This gives us a reasonable result. But, when we use this in PDAL, (I assume) we want a subdivided shape to ensure we don’t have to access the entire point cloud at any given time to do our clipping. We’ll add to this process ST_SubDivide, which will subdivide our shape into parts not to exceed a certain number of nodes. In this case we’ll choose 500 nodes per shape:

DROP TABLE IF EXISTS "salaam-buff-diff-split1";
CREATE TABLE "salaam-buff-diff-split1" AS
WITH subset AS (
	SELECT ST_Transform(geom, 32737) AS geom FROM "salaam-buildings" LIMIT 20000
	),
extent AS (
	SELECT ST_ConvexHull(ST_Union(geom)) AS geom FROM subset
	),
unioned AS (
	SELECT ST_Union(geom) AS geom FROM subset
	),
differenced AS (
	SELECT ST_Difference(a.geom, b.geom) AS geom FROM
	extent a, unioned b
	)
SELECT 1 AS id, ST_Subdivide(geom, 500) AS geom FROM
differenced;

subdivided

Finally, if we want to be sure to remove the points from the edges of buildings (we can assume the digitized buildings won’t perfectly match our point clouds), then we should buffer our shapes:

DROP TABLE IF EXISTS "salaam-buff-diff-split1";
CREATE TABLE "salaam-buff-diff-split1" AS
WITH subset AS (
	SELECT ST_Transform(geom, 32737) AS geom FROM "salaam-buildings" LIMIT 20000
	),
buffered AS (
	SELECT ST_Buffer(geom, 2, 'join=mitre mitre_limit=5.0') AS geom FROM subset
	),
extent AS (
	SELECT ST_ConvexHull(ST_Union(geom)) AS geom FROM subset
	),
unioned AS (
	SELECT ST_Union(geom) AS geom FROM Buffered
	),
differenced AS (
	SELECT ST_Difference(a.geom, b.geom) AS geom FROM
	extent a, unioned b
	)
SELECT 1 AS id, ST_Subdivide(geom, 500) AS geom FROM
differenced;

If we recall our before point cloud:

screen-shot-2016-10-15-at-3-15-44-pm

screen-shot-2016-10-15-at-4-38-53-pm

Now we have filtered out most buildings:

screen-shot-2016-10-15-at-4-36-15-pm

screen-shot-2016-10-15-at-4-36-31-pm

In order to do this filtering in PDAL, we do two things. First we create a json file that defines the filter:

{
  "pipeline":[
    "/data/2015-05-20_tandale_merged_densified_point_cloud_part_1.las",
    {
      "type":"filters.attribute",
      "dimension":"Classification",
      "datasource":"/data/salaam-buff-diff-split.shp",
      "layer":"salaam-buff-diff-split",
      "column":"id"
    },
    {
      "type":"filters.range",
      "limits":"Classification[1:1]"
    },
    "/data/2015-05-20_tandale_merged_densified_point_cloud_part_1_nobuild_buff.las"
  ]
}

Then we use these json definitions to apply the filter:

nohup sudo docker run -v /home/gisuser/docker/:/data pdal/pdal:1.3 pdal pipeline /data/shape-clip.json

Problems continue

This looks pretty good, but as we interrogate the data, we can see the artifacts of trees and some buildings still linger in the dataset.

screen-shot-2016-10-15-at-4-37-38-pm

screen-shot-2016-10-15-at-4-38-03-pm



Enter the Progressive Morphological Filter

It is possible to use the shape of the surface model to filter out buildings and trees. To do so, we start with the assumption that the buildings and vegetation shapes distinctive from the shape of the underlying ground. We have already used the hard work of the OpenStreetMap community to filter most of the buildings, but we still have some buildings and plenty of trees. PDAL has another great tutorial for applying this filter which we’ll leverage.

Again we need a JSON file to define our filter:

{
  "pipeline": {
    "name": "Progressive Morphological Filter with Outlier Removal",
    "version": 1.0,
    "filters": [{
        "name": "StatisticalOutlierRemoval",
        "setMeanK": 8,
        "setStddevMulThresh": 3.0
      }, {
        "name": "ProgressiveMorphologicalFilter",
        "setCellSize": 1.5
    }]
  }
}

And then use that filter to remove all the morphology and statistical outliers we don’t want:

nohup sudo docker run -v /home/gisuser/docker/:/data pdal/pdal:1.3 pdal pcl -i /data/2015-05-20_tandale_merged_densified_point_cloud_part_1_nobuild_buff.las -o /data/nobuild_filtered2.las -p /data/sor-pmf.json

This command will remove our colorization for the points, so we’ll see the colorization according to height only:

screen-shot-2016-10-15-at-4-53-55-pm

screen-shot-2016-10-15-at-4-54-49-pm



What remains is to interpolate this into digital terrain model. That is a project for another day.

Posted in 3D, Drone, Other, PDAL, Photogrammetry, UAS | Tagged: , , , | 1 Comment »

Viewing Sparse Point Clouds from OpenDroneMap — GeoKota

Posted by smathermather on June 30, 2016

This is a post about OpenDroneMap, an opensource project I am a maintainer for. ODM is a toolchain for post-processing drone imagery to create 3D and mapping products. It’s currently in beta and under pretty heavy development. If you’re interested in contributing to the project head over here. The Problem So for most of the […]

via Viewing Sparse Point Clouds from OpenDroneMap — GeoKota

Posted in 3D, Image Processing, OpenDroneMap, OpenDroneMap, Optics, Other, Photogrammetry | Tagged: , , , | Leave a Comment »

OpenDroneMap — texturing improvements

Posted by smathermather on March 27, 2016

Great news on OpenDroneMap. We now have a branch that has MVS-Texturing integrated, thanks to continuing work by Spotscale, and of course continuing integration work by @dakotabenjamin.

The MVS-Texturing branch isn’t fully tested yet, nor fully integrated, but the initial results are promising. MVS-Texturing itself handles the problems of choosing the best photos for a given facet on a textured model in order to do a great job texturing a complex scene. This bears the promise of vastly improved textured models and very nice orthophotos.. It seems an ideal drop in for the texturing limitations of OpenDroneMap. From the project site:

Our method addresses most challenges occurring in such reconstructions: the large number of input images, their drastically varying properties such as image scale, (out-of-focus) blur, exposure variation, and occluders (e.g., moving plants or pedestrians). Using the proposed technique, we are able to texture datasets that are several orders of magnitude larger and far more challenging than shown in related work.

When we apply this approach to one of our more difficult datasets, which was taken on a partially cloud part of the day…


we get very promising results:



Posted in 3D, OpenDroneMap | 1 Comment »

Taking Slices from LiDAR data: Part VI

Posted by smathermather on March 19, 2016

I finally got PDAL properly compiled with Point Cloud Library (PCL) baked in. Word to the wise — CLANG is what the makers are using to compile. The PDAL crew were kind enough to revert the commit which broke GCC support, but why swim upstream? If you are compiling PDAL yourself, use CLANG. (Side note, the revert to support GCC was really helpful for ensuring we could embed PDAL into OpenDroneMap without any compiler changes for that project.)

With a compiled version of PDAL with the PCL dependencies built in, I can bypass using the docker instance. When I was spawning tens of threads of Docker and then killing them, recovery was a problem (it would often hose my docker install completely). I’m sure there’s some bug to report there, or perhaps spawning 40 docker threads is ill advised for some grander reason, but regardless, running PDAL outside a container has many benefits, including simpler code. If you recall our objectives with this script, we want to:

  • Calculate relative height of LiDAR data
  • Slice that data into bands of heights
  • Load the data into a PostgreSQL/PostGIS/pgPointCloud database.

The control script without docker becomes as follows:

#!/bin/bash

# readlink gets us the full path to the file. This is necessary for docker
readlinker=`readlink -f $1`
# returns just the directory name
pathname=`dirname $readlinker`
# basename will strip off the directory name and the extension
name=`basename $1 .las`

# PDAL must be built with PCL.
# See http://www.pdal.io/tutorial/calculating-normalized-heights.html

pdal translate "$name".las "$name".bpf height --writers.bpf.output_dims="X,Y,Z,Intensity,ReturnNumber,NumberOfReturns,ScanDirectionFlag,EdgeOfFlightLine,Classification,ScanAngleRank,UserData,PointSourceId,HeightAboveGround"

# Now we split the lidar data into slices of heights, from 0-1.5 ft, etc.
# on up to 200 feet. We're working in the Midwest, so we don't anticipate
# trees much taller than ~190 feet
for START in 0:1.5 1.5:3 3:6 6:15 15:30 30:45 45:60 60:105 105:150 150:200
        do
        # We'll use the height classes to name our output files and tablename.
        # A little cleanup is necessary, so we're removing the colon ":".
        nameend=`echo $START | sed s/:/-/g`

        # Name our output
        bpfname=$name"_"$nameend.bpf

        # Implement the height range filter
        pdal translate $name.bpf $bpfname -f range --filters.range.limits="HeightAboveGround[$START)"

        # Now we put our data in the PostgreSQL database.
        pdal pipeline -i pipeline.xml --writers.pgpointcloud.table='pa_layer_'$nameend --readers.bpf.filename=$bpfname --writers.pgpointcloud.overwrite='false'
done

We still require our pipeline xml in order to set our default options as follows:

<?xml version="1.0" encoding="utf-8"?>
<Pipeline version="1.0">
  <Writer type="writers.pgpointcloud">
    <Option name="connection">
      host='localhost' dbname='user' user='user' password=‘password’
    </Option>
    <Option name="table">54001640PAN_heightasz_0-1.5</Option>
    <Option name="compression">dimensional</Option>
    <Filter type="filters.chipper">
      <Option name="capacity">400</Option>
      <Reader type="readers.bpf">
      <Option name="filename">54001640PAN_heightasz_0-1.5.bpf</Option>
      </Reader>
    </Filter>
  </Writer>
</Pipeline>

And as before, we can use parallel to make this run a little lot faster:

find . -name '*.las' | parallel -j20 ./pdal_processor.sh

For the record, I found out through testing that my underlying host only has 20 processors (though more cores). No point in running more processes than that… .

So, when point clouds get loaded, they’re broken up in to “chips” or collections of points. How many chips do we have so far?:

user=# SELECT COUNT(*) FROM "pa_layer_0-1.5";
  count
----------
 64413535
(1 row)

Now, how many rows is too many in a PostgreSQL database? Answer:

In other words, your typical state full of LiDAR (Pennsylvania or Ohio for example) are not too large to store, retrieve, and analyze. If you’re in California or Texas, or have super dense stuff that’s been flown recently, you will have to provide some structure in the form of partitioning your data into separate tables based on e.g. geography. You could also modify your “chipper” size in the XML file. I have used the default 400 points per patch (for about 25,765,414,000 points total), which is fine for my use case as then I do not exceed 100 million rows once the points are chipped:

      <Option name="capacity">400</Option>

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | 3 Comments »

OpenDroneMap — Paris Code Sprint

Posted by smathermather on February 29, 2016

I failed to make it to the Paris Code Sprint. It just wasn’t in the cards. But, my colleague Dakota and I sprinted anyway, with some help and feedback from the OpenDroneMap community.

So, what did we do? Dakota did most of the work. He hacked away at the cmake branch of ODM, a branch set up by Edgar Riba to substantially improve the installation process for ODM.

  • Fixed odm_orthophoto in the branch so that it produces geotiffs
  • Fixed PMVS so that it is multithreaded again
  • Added rerun-all and rerun-from function
  • Integrated @lupas78’s additions for an xyz point cloud output
  • Added benchmarking which is an important soft number for when we have code changes
  • (Technically before the sprint) wrote the first test for OpenDroneMap
  • Cleaned code
What did I do? Mostly, I got caught up with the project. I haven’t been very hands on since the python port, let alone the cmake branch, so I became a little more pythonistic by just trying to successfully modify the code.
  • I also added PDAL to the build processs
  • And I inserted PDAL into the point cloud translation process.

Currently, this means we’ve dropped support for LAZ output, as I haven’t successfully built PDAL with LAZ support, but it stages the project for LAZ support through PDAL, and allows us to tap into additional PDAL functionality in the future.

It was an intensive couple of days that would have been improved with French wine, but we were in Parma (Ohio). So, a shout out to the coders in Paris at the same time, and cheers to all.

Posted in 3D, Drone, OpenDroneMap, OpenDroneMap, Photogrammetry, PMVS, UAS | Tagged: , | Leave a Comment »

Taking Slices from LiDAR data: Part V

Posted by smathermather on February 10, 2016

For this post, let’s combine the work in the last 4 posts in order to get a single pipeline for doing the following:

  • Calculate relative height of LiDAR data
  • Slice that data into bands of heights
  • Load the data into a PostgreSQL/PostGIS/pgPointCloud database.
#!/bin/bash

# readlink gets us the full path to the file. This is necessary for docker
readlinker=`readlink -f $1`
# returns just the directory name
pathname=`dirname $readlinker`
# basename will strip off the directory name and the extension
name=`basename $1 .las`

# Docker run allows us to leverage a pdal machine with pcl built in,
# thus allowing us to calculate height.
# See http://www.pdal.io/tutorial/calculating-normalized-heights.html
docker run -v $pathname:/data pdal/master pdal translate //data/"$name".las //data/"$name"_height.bpf height --writers.bpf.output_dims="X,Y,Z,Intensity,ReturnNumber,NumberOfReturns,ScanDirectionFlag,EdgeOfFlightLine,Classification,ScanAngleRank,UserData,PointSourceId,Height";

# Now we split the lidar data into slices of heights, from 0-1.5 ft, etc.
# on up to 200 feet. We're working in the Midwest, so we don't anticipate
# trees much taller than ~190 feet
for START in 0:1.5 1.5:3 3:6 6:15 15:30 30:45 45:60 60:105 105:150 150:200
 do
  # We'll use the height classes to name our output files and tablename.
  # A little cleanup is necessary, so we're removing the colon ":".
  nameend=`echo $START | sed s/:/-/g`

  # Name our output
  bpfname=$name"_"$nameend.bpf

  # Implement the height range filter
  pdal translate $name"_height".bpf $bpfname -f range --filters.range.limits="Height[$START)"

  # Now we put our data in the PostgreSQL database.
  pdal pipeline -i pipeline.xml --writers.pgpointcloud.table='layer_'$nameend --readers.bpf.filename=$bpfname --writers.pgpointcloud.overwrite='false'
done

Now, we can use parallel to make this run a little faster:

find . -name "*.las" | parallel -j6 ./pdal_processor.sh {}&

Sadly, we can run into issues in running this in parallel:

PDAL: ERROR:  duplicate key value violates unique constraint "pointcloud_formats_pkey"
DETAIL:  Key (pcid)=(1) already exists.


PDAL: ERROR:  duplicate key value violates unique constraint "pointcloud_formats_pkey"
DETAIL:  Key (pcid)=(1) already exists.

This issue is a one time issue, however — we just can’t parallelize table creation. Once the tables are created however, I believe we can parallelize without issue. I’ll report if I find otherwise.

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | Leave a Comment »
