Taking Slices from ~~LiDAR~~ OpenDroneMap data: Part X

Posted by smathermather on February 23, 2017

Part 10 of N… , wait. This is a lie. This post is actually about optical drone data, not LiDAR data. This is about next phase features fro OpenDroneMap — automated and semiautomation of the point clouds, creation of DTMs and other fun such stuff.

To date, we’ve only extracted Digital Surface Models from ODM — the top surface of everything in the scene. As it is useful for hydrological modeling and other purposes to have a Digital Terrain Model estimated, we’ll be including PDAL’s Progressive Morphological Filter for the sake of DEM extraction. Here’s a small preview:

Posted in 3D, Docker, OpenDroneMap, PDAL | Tagged: , , | Leave a Comment »

Taking Slices from LiDAR data: Part IX

Posted by smathermather on February 20, 2017

Part 9 of N… , see e.g. my previous post on the topic.

We’ve been working to reduce the effect of overlapping samples on statistics we run on LiDAR data, and to do so, we’ve been using PDAL’s filters.sample approach. One catch: this handles the horizontal sampling problem well, but we might want to intentionally retain samples from high locations — after all, I want to see the trees for the forest and vice versa. So, it might behoove us to sample within each of our desired height classes to retain as much vertical information as possible.

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | Leave a Comment »

Taking Slices from LiDAR data: Part VIII

Posted by smathermather on February 18, 2017

Part 8 of N… , see e.g. my previous post on the topic.

I didn’t think my explanation of sampling problems with LiDAR data in my previous post was adequate. Here are a couple more figures for clarification.

We can take this dataset over trees, water, fences, and buildings that is heavily sampled in some areas and sparsely sampled in others and use PDAL’s filters.sample (Poisson dart-throwing) to create an evenly sampled version of the dataset.

Figure showing overlap of LiDAR scanlines

Figure showing overlap of LiDAR scanlines

Figure showing data resampled for eveness

Figure showing data resampled for evenness

An extra special thanks to the PDAL team for not only building such cool software, but being so responsive to questions!

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | Leave a Comment »

Taking Slices from LiDAR data: Part VII

Posted by smathermather on February 15, 2017

Part 7 of N… , see e.g. my previous post on the topic.

More work on taking LiDAR slices. This time, the blog post is all about data preparation. LiDAR data, in its raw form, often has scan line effects when we look at density of points.

lidar_flightlines

This can affect statistics we are running, as our sampling effort is not even. To ameliorate this affect a bit, we can decimate our point cloud before doing further work with it. In PDAL, we have three choices for decimation: filters.decimation, which samples every Nth point from the point cloud; filters.voxelgrid, which does volumetric pixel based resampling; and filters.sample or “Poisson sampling via ‘Dart Throwing'”.

filters.decimation won’t help us with the above problem. Voxelgrid sampling could help, but it’s very regular, so I reject this on beauty grounds alone. This leaves filters.sample.

The nice thing about both the voxelgrid and the poisson sampling is that they retain much of the shape of the point cloud while down sampling the data:

subsample-ex1

subsample-ex2

We will execute the poisson sampling in PDAL. As many things in PDAL are best done with a (json) pipeline file, we construct a pipeline file describing the filtering we want to do, and then call that from the command line:

We can slice our data up similar to previous posts, and then look at the point density per slice. R-code for doing this forthcoming (thanks to Chris Tracey at Western Pennsylvania Conservancy and the LidR project), but below is a graphic as a teaser. For the record, we will probably pursue a fully PDAL solution in the end, but really interesting results in the interim:


More to come. Stay tuned.

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | 2 Comments »

Finding peace, finding ground: Drone flights for hydrologic modeling

Posted by smathermather on October 15, 2016

Š-L-M

Lately I’ve been helping with project to predict flooding in Dar es Salaam (“Home of Peace”), the capital former capital of Tanzania in East Africa. This is a really fun project for me, in part because most of the hard work is already done, but there still remain some tricky problems to solve.

This project is a part of Dar Ramani Huria, a “community-based mapping project… training university students and local community members to create highly accurate maps of the most flood-prone areas of the city using OpenStreetMap.”

Dar es Salaam (or Dar for short), is the fastest growing city in Africa, making the identification of flood prone zones during rainy seasons absolutely critical. The Ramani Huria crew has mapped the streams, ditches, and other waterways of Dar, as well as flown imagery (via drone) over much of the city critical parts of the city.

screen-shot-2016-10-15-at-3-01-04-pm

Problem Space:

The results are stunning, but using drone imagery and photogrammetric point clouds (instead of LiDAR) has it’s limitations.

One problem, that I’m not going to get into in any depth today, is the difficulty of conflating (vertically and horizontally) different datasets flown at different times with commodity GPS.

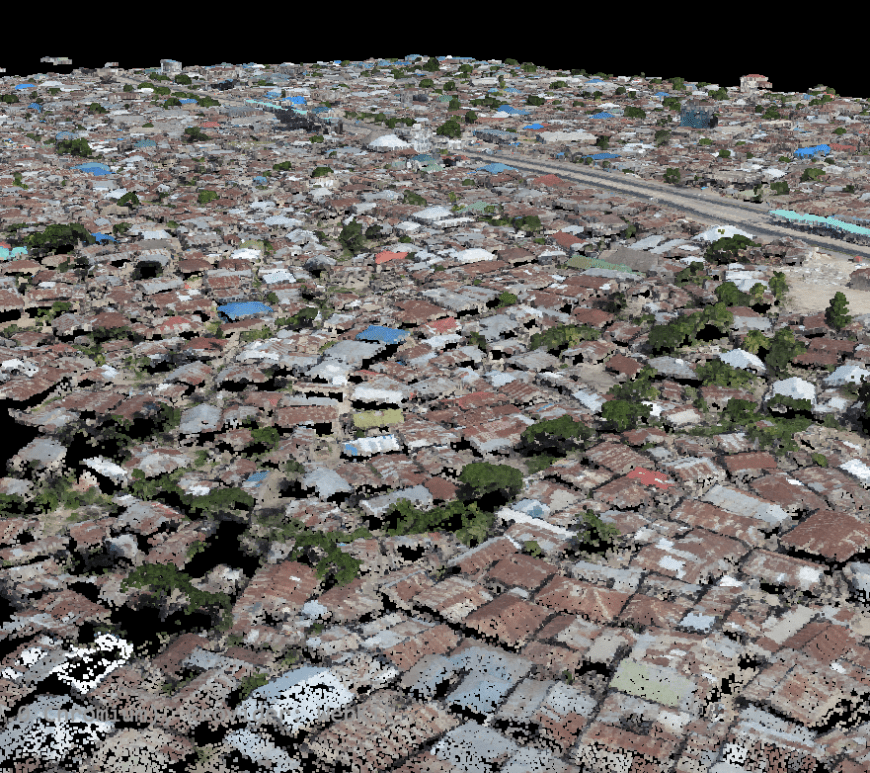

Another problem is the difficulty of turning photogrammetrically derived point clouds into Digital Terrain Models. There is proprietary software that does this well (e.g. LasTools and others), but we seek a free and open source alternative. Let’s visualize the problem. See below a photogrammetrically-derived point cloud (processed in Pix4D, visualized at https://plas.io):

screen-shot-2016-10-15-at-3-15-44-pm

We can directly turn this into a digital surface model (DSM):

screen-shot-2016-10-15-at-3-24-23-pm

5

We can see the underlying topography, but buildings and trees are much of the signal in the surface model. If we, for example, calculate height above the nearest stream as a proxy for flooding, we get a noisy result.

OSM to the Rescue

If you recall at the beginning of this post, I said this is “a really fun project for me” because “most of the hard work is already done”. Dar is a city with pretty much every building digitized. We can take advantage of this work to remove buildings from our point cloud. We’ll use the utilities associated with the Point Data Abstraction Layer (PDAL) library. Specifically, we’ll use PDAL’s ability to clip point cloud data with 2D OGR compatible geometries (a great tutorial on this here).

First thing we need to do is extract the buildings from OSM into shapefiles. For this, and easy way is to use Mapzen’s Metro Extracts:

screen-shot-2016-10-15-at-3-58-35-pm

I chose Datasets grouped into individual layers by OpenStreetMap tags (IMPOSM) as this gives me the capacity to just choose “Buildings”. I loaded those buildings into a PostGIS database for the next steps. What I seek is a shapefile of all the areas which are not buildings, essentially from this:

building

To this:

no_building

For this we’ll need to use ST_Difference + ST_ConvexHull. ST_ConvexHull will create a shape of the extent of our data, and we’ll use ST_Difference to cookie-cutter out all the building footprints:

DROP TABLE IF EXISTS "salaam-buff-diff-split1";
CREATE TABLE "salaam-buff-diff-split1" AS
WITH subset AS (
	SELECT ST_Transform(geom, 32737) AS geom FROM "salaam-buildings" LIMIT 20000
	),
extent AS (
	SELECT ST_ConvexHull(ST_Union(geom)) AS geom FROM subset
	),
unioned AS (
	SELECT ST_Union(geom) AS geom FROM subset
	),
differenced AS (
	SELECT ST_Difference(a.geom, b.geom) AS geom FROM
	extent a, unioned b
	)
SELECT 1 AS id, geom FROM differenced;

This gives us a reasonable result. But, when we use this in PDAL, (I assume) we want a subdivided shape to ensure we don’t have to access the entire point cloud at any given time to do our clipping. We’ll add to this process ST_SubDivide, which will subdivide our shape into parts not to exceed a certain number of nodes. In this case we’ll choose 500 nodes per shape:

DROP TABLE IF EXISTS "salaam-buff-diff-split1";
CREATE TABLE "salaam-buff-diff-split1" AS
WITH subset AS (
	SELECT ST_Transform(geom, 32737) AS geom FROM "salaam-buildings" LIMIT 20000
	),
extent AS (
	SELECT ST_ConvexHull(ST_Union(geom)) AS geom FROM subset
	),
unioned AS (
	SELECT ST_Union(geom) AS geom FROM subset
	),
differenced AS (
	SELECT ST_Difference(a.geom, b.geom) AS geom FROM
	extent a, unioned b
	)
SELECT 1 AS id, ST_Subdivide(geom, 500) AS geom FROM
differenced;

subdivided

Finally, if we want to be sure to remove the points from the edges of buildings (we can assume the digitized buildings won’t perfectly match our point clouds), then we should buffer our shapes:

DROP TABLE IF EXISTS "salaam-buff-diff-split1";
CREATE TABLE "salaam-buff-diff-split1" AS
WITH subset AS (
	SELECT ST_Transform(geom, 32737) AS geom FROM "salaam-buildings" LIMIT 20000
	),
buffered AS (
	SELECT ST_Buffer(geom, 2, 'join=mitre mitre_limit=5.0') AS geom FROM subset
	),
extent AS (
	SELECT ST_ConvexHull(ST_Union(geom)) AS geom FROM subset
	),
unioned AS (
	SELECT ST_Union(geom) AS geom FROM Buffered
	),
differenced AS (
	SELECT ST_Difference(a.geom, b.geom) AS geom FROM
	extent a, unioned b
	)
SELECT 1 AS id, ST_Subdivide(geom, 500) AS geom FROM
differenced;

If we recall our before point cloud:

screen-shot-2016-10-15-at-3-15-44-pm

screen-shot-2016-10-15-at-4-38-53-pm

Now we have filtered out most buildings:

screen-shot-2016-10-15-at-4-36-15-pm

screen-shot-2016-10-15-at-4-36-31-pm

In order to do this filtering in PDAL, we do two things. First we create a json file that defines the filter:

{
  "pipeline":[
    "/data/2015-05-20_tandale_merged_densified_point_cloud_part_1.las",
    {
      "type":"filters.attribute",
      "dimension":"Classification",
      "datasource":"/data/salaam-buff-diff-split.shp",
      "layer":"salaam-buff-diff-split",
      "column":"id"
    },
    {
      "type":"filters.range",
      "limits":"Classification[1:1]"
    },
    "/data/2015-05-20_tandale_merged_densified_point_cloud_part_1_nobuild_buff.las"
  ]
}

Then we use these json definitions to apply the filter:

nohup sudo docker run -v /home/gisuser/docker/:/data pdal/pdal:1.3 pdal pipeline /data/shape-clip.json

Problems continue

This looks pretty good, but as we interrogate the data, we can see the artifacts of trees and some buildings still linger in the dataset.

screen-shot-2016-10-15-at-4-37-38-pm

screen-shot-2016-10-15-at-4-38-03-pm



Enter the Progressive Morphological Filter

It is possible to use the shape of the surface model to filter out buildings and trees. To do so, we start with the assumption that the buildings and vegetation shapes distinctive from the shape of the underlying ground. We have already used the hard work of the OpenStreetMap community to filter most of the buildings, but we still have some buildings and plenty of trees. PDAL has another great tutorial for applying this filter which we’ll leverage.

Again we need a JSON file to define our filter:

{
  "pipeline": {
    "name": "Progressive Morphological Filter with Outlier Removal",
    "version": 1.0,
    "filters": [{
        "name": "StatisticalOutlierRemoval",
        "setMeanK": 8,
        "setStddevMulThresh": 3.0
      }, {
        "name": "ProgressiveMorphologicalFilter",
        "setCellSize": 1.5
    }]
  }
}

And then use that filter to remove all the morphology and statistical outliers we don’t want:

nohup sudo docker run -v /home/gisuser/docker/:/data pdal/pdal:1.3 pdal pcl -i /data/2015-05-20_tandale_merged_densified_point_cloud_part_1_nobuild_buff.las -o /data/nobuild_filtered2.las -p /data/sor-pmf.json

This command will remove our colorization for the points, so we’ll see the colorization according to height only:

screen-shot-2016-10-15-at-4-53-55-pm

screen-shot-2016-10-15-at-4-54-49-pm



What remains is to interpolate this into digital terrain model. That is a project for another day.

Posted in 3D, Drone, Other, PDAL, Photogrammetry, UAS | Tagged: , , , | 1 Comment »

Taking Slices from LiDAR data: Part VI

Posted by smathermather on March 19, 2016

I finally got PDAL properly compiled with Point Cloud Library (PCL) baked in. Word to the wise — CLANG is what the makers are using to compile. The PDAL crew were kind enough to revert the commit which broke GCC support, but why swim upstream? If you are compiling PDAL yourself, use CLANG. (Side note, the revert to support GCC was really helpful for ensuring we could embed PDAL into OpenDroneMap without any compiler changes for that project.)

With a compiled version of PDAL with the PCL dependencies built in, I can bypass using the docker instance. When I was spawning tens of threads of Docker and then killing them, recovery was a problem (it would often hose my docker install completely). I’m sure there’s some bug to report there, or perhaps spawning 40 docker threads is ill advised for some grander reason, but regardless, running PDAL outside a container has many benefits, including simpler code. If you recall our objectives with this script, we want to:

  • Calculate relative height of LiDAR data
  • Slice that data into bands of heights
  • Load the data into a PostgreSQL/PostGIS/pgPointCloud database.

The control script without docker becomes as follows:

#!/bin/bash

# readlink gets us the full path to the file. This is necessary for docker
readlinker=`readlink -f $1`
# returns just the directory name
pathname=`dirname $readlinker`
# basename will strip off the directory name and the extension
name=`basename $1 .las`

# PDAL must be built with PCL.
# See http://www.pdal.io/tutorial/calculating-normalized-heights.html

pdal translate "$name".las "$name".bpf height --writers.bpf.output_dims="X,Y,Z,Intensity,ReturnNumber,NumberOfReturns,ScanDirectionFlag,EdgeOfFlightLine,Classification,ScanAngleRank,UserData,PointSourceId,HeightAboveGround"

# Now we split the lidar data into slices of heights, from 0-1.5 ft, etc.
# on up to 200 feet. We're working in the Midwest, so we don't anticipate
# trees much taller than ~190 feet
for START in 0:1.5 1.5:3 3:6 6:15 15:30 30:45 45:60 60:105 105:150 150:200
        do
        # We'll use the height classes to name our output files and tablename.
        # A little cleanup is necessary, so we're removing the colon ":".
        nameend=`echo $START | sed s/:/-/g`

        # Name our output
        bpfname=$name"_"$nameend.bpf

        # Implement the height range filter
        pdal translate $name.bpf $bpfname -f range --filters.range.limits="HeightAboveGround[$START)"

        # Now we put our data in the PostgreSQL database.
        pdal pipeline -i pipeline.xml --writers.pgpointcloud.table='pa_layer_'$nameend --readers.bpf.filename=$bpfname --writers.pgpointcloud.overwrite='false'
done

We still require our pipeline xml in order to set our default options as follows:

<?xml version="1.0" encoding="utf-8"?>
<Pipeline version="1.0">
  <Writer type="writers.pgpointcloud">
    <Option name="connection">
      host='localhost' dbname='user' user='user' password=‘password’
    </Option>
    <Option name="table">54001640PAN_heightasz_0-1.5</Option>
    <Option name="compression">dimensional</Option>
    <Filter type="filters.chipper">
      <Option name="capacity">400</Option>
      <Reader type="readers.bpf">
      <Option name="filename">54001640PAN_heightasz_0-1.5.bpf</Option>
      </Reader>
    </Filter>
  </Writer>
</Pipeline>

And as before, we can use parallel to make this run a little lot faster:

find . -name '*.las' | parallel -j20 ./pdal_processor.sh

For the record, I found out through testing that my underlying host only has 20 processors (though more cores). No point in running more processes than that… .

So, when point clouds get loaded, they’re broken up in to “chips” or collections of points. How many chips do we have so far?:

user=# SELECT COUNT(*) FROM "pa_layer_0-1.5";
  count
----------
 64413535
(1 row)

Now, how many rows is too many in a PostgreSQL database? Answer:

In other words, your typical state full of LiDAR (Pennsylvania or Ohio for example) are not too large to store, retrieve, and analyze. If you’re in California or Texas, or have super dense stuff that’s been flown recently, you will have to provide some structure in the form of partitioning your data into separate tables based on e.g. geography. You could also modify your “chipper” size in the XML file. I have used the default 400 points per patch (for about 25,765,414,000 points total), which is fine for my use case as then I do not exceed 100 million rows once the points are chipped:

      <Option name="capacity">400</Option>

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | 3 Comments »

Taking Slices from LiDAR data: Part V

Posted by smathermather on February 10, 2016

For this post, let’s combine the work in the last 4 posts in order to get a single pipeline for doing the following:

  • Calculate relative height of LiDAR data
  • Slice that data into bands of heights
  • Load the data into a PostgreSQL/PostGIS/pgPointCloud database.
#!/bin/bash

# readlink gets us the full path to the file. This is necessary for docker
readlinker=`readlink -f $1`
# returns just the directory name
pathname=`dirname $readlinker`
# basename will strip off the directory name and the extension
name=`basename $1 .las`

# Docker run allows us to leverage a pdal machine with pcl built in,
# thus allowing us to calculate height.
# See http://www.pdal.io/tutorial/calculating-normalized-heights.html
docker run -v $pathname:/data pdal/master pdal translate //data/"$name".las //data/"$name"_height.bpf height --writers.bpf.output_dims="X,Y,Z,Intensity,ReturnNumber,NumberOfReturns,ScanDirectionFlag,EdgeOfFlightLine,Classification,ScanAngleRank,UserData,PointSourceId,Height";

# Now we split the lidar data into slices of heights, from 0-1.5 ft, etc.
# on up to 200 feet. We're working in the Midwest, so we don't anticipate
# trees much taller than ~190 feet
for START in 0:1.5 1.5:3 3:6 6:15 15:30 30:45 45:60 60:105 105:150 150:200
 do
  # We'll use the height classes to name our output files and tablename.
  # A little cleanup is necessary, so we're removing the colon ":".
  nameend=`echo $START | sed s/:/-/g`

  # Name our output
  bpfname=$name"_"$nameend.bpf

  # Implement the height range filter
  pdal translate $name"_height".bpf $bpfname -f range --filters.range.limits="Height[$START)"

  # Now we put our data in the PostgreSQL database.
  pdal pipeline -i pipeline.xml --writers.pgpointcloud.table='layer_'$nameend --readers.bpf.filename=$bpfname --writers.pgpointcloud.overwrite='false'
done

Now, we can use parallel to make this run a little faster:

find . -name "*.las" | parallel -j6 ./pdal_processor.sh {}&

Sadly, we can run into issues in running this in parallel:

PDAL: ERROR:  duplicate key value violates unique constraint "pointcloud_formats_pkey"
DETAIL:  Key (pcid)=(1) already exists.


PDAL: ERROR:  duplicate key value violates unique constraint "pointcloud_formats_pkey"
DETAIL:  Key (pcid)=(1) already exists.

This issue is a one time issue, however — we just can’t parallelize table creation. Once the tables are created however, I believe we can parallelize without issue. I’ll report if I find otherwise.

Posted in 3D, Database, Docker, LiDAR, Other, PDAL, pointcloud, PostGIS, PostgreSQL | Tagged: , , , , , | Leave a Comment »

Taking Slices from LiDAR data: Part IV

Posted by smathermather on February 5, 2016

Trans-Alaska Pipeline System Luca Galuzzi 2005

In PDAL, a pipeline file can be used to do a variety of operations. Within the following context, I think of a pipeline file like an ad hoc preferences file, where I can use an external command to iterate through the things I want to change, while holding constant everything else in the pipeline file.

In my use case for this vignette, I’ll use the pipeline file to hold my database preferences for putting the point clouds into my PostGIS database. For the record, I’m using vpicavet’s docker pggis as the starting place for installing PostGIS with the pgpointcloud extension. I have adapted the following pipeline file from the PDAL writers.pgpointcloud example.

<?xml version="1.0" encoding="utf-8"?>
<Pipeline version="1.0">
  <Writer type="writers.pgpointcloud">
    <Option name="connection">
      host='localhost' dbname=‘lidar’ user='user' password=‘password’
    </Option>
    <Option name="table">54001640PAN_heightasz_0-1.5</Option>
    <Option name="compression">dimensional</Option>
<!--    <Option name="srid">3270</Option> -->
    <Filter type="filters.chipper">
      <Option name="capacity">400</Option>
      <Reader type="readers.las">
          <Option name="filename">54001640PAN_heightasz_0-1.5.las</Option>
<!--          <Option name="spatialreference">EPSG:3270</Option> -->
      </Reader>
    </Filter>
  </Writer>
</Pipeline>

Some things to note. I have commented out the SRID and readers.las.spatialreference in the XML above. We’ll rely on PDAL to discover this, and use the default output of epsg:4326 to store our point clouds for the time being.

Our wrapper script for the pipeline file is very simple. We will use the wrapper script to specify the table and the input file name.

#!/bin/bash

TABLE=`basename $1 .bpf`
INPUT=$1

#echo $TABLE
pdal pipeline -i pipeline.xml --writers.pgpointcloud.table=$TABLE --readers.bpf.filename=$INPUT

Now to use, we’ll use GNU Parallel, as much for it’s XArgs like functionality as scalability:

ls *.bpf | parallel -j6 ./pipeliner.sh {}

Now we can see what tables got loaded:

psql -d lidar
psql (9.5.0)
Type "help" for help.

lidar=# \dt
                    List of relations
 Schema |             Name              | Type  |  Owner
--------+-------------------------------+-------+---------
 public | 54001640PAN_heightasz_0-1.5   | table | user
 public | 54001640PAN_heightasz_1.5-6   | table | user
 public | 54001640PAN_heightasz_100-200 | table | user
 public | 54001640PAN_heightasz_30-45   | table | user
 public | 54001640PAN_heightasz_45-55   | table | user
 public | 54001640PAN_heightasz_55-65   | table | user
 public | 54001640PAN_heightasz_6-30    | table | user
 public | 54001640PAN_heightasz_65-75   | table | user
 public | 54001640PAN_heightasz_75-85   | table | user
 public | 54001640PAN_heightasz_85-100  | table | user
 public | pointcloud_formats            | table | user
 public | spatial_ref_sys               | table | user
(12 rows)

W00t! We’ve got point clouds in our database! Next, we will visualize the data, and extract some analyses from it.

Posted in 3D, LiDAR, Other, PDAL, pointcloud | Tagged: , , | Leave a Comment »

Taking Slices from LiDAR data: Part III

Posted by smathermather on February 5, 2016

forest_structure
Borrowed from: http://irwantoshut.com

Continuing my series on slicing LiDAR data in order to analyze a forest, one of the objectives of the current project is to understand the habitats that particular species of birds prefer. This will be accomplished using field info from breeding bird surveys combined with LiDAR data of forest structure to help predict what habitats are necessary for particular species of breeding birds.

There are a number of studies doing just this for a variety of regions which I will detail later, but suffice it to say, structure of vegetation matters a lot to birds, so using LiDAR to map out structure can be an important predictive tool for mapping bird habitat. Being able to do that at scale across entire ecoregions—well, that’s just an exciting prospect.
Let’s get to some coding. I would like to take a few slices through our forest based on functional height groups:

Forest Canopy >15 meters
Sub-Canopy 10-15 meters
Tall Shrub 2-10 meters
Short Shrub 0.5-2 meters

(For the record, we don’t have to get these perfectly right. Sub-canopy, for example could be taller or shorter depending on how tall a forest it is in. This is just a convenience for dividing and reviewing the data for the time being. Also, we’ll split a little finer than the above numbers just for giggles.)

We’ll start by just echoing our pdal translate to make sure we like what we are getting for output:

for START in 0:0.5 0.5:1 1:2 2:5 5:10 10:15 15:20 20:35 35:50 50:75 75:100 100:200
 do
  nameend=`echo $START | sed s/:/-/g`
  echo pdal translate 54001640PAN_heightasz.bpf 54001640PAN_heightasz_$nameend.bpf -f range --filters.range.limits="Height[$START)"
done

Thus we get the following output:

pdal translate 54001640PAN_heightasz.bpf 54001640PAN_heightasz_0-0.5.bpf -f range --filters.range.limits=Height[0:0.5)
pdal translate 54001640PAN_heightasz.bpf 54001640PAN_heightasz_0.5-1.bpf -f range --filters.range.limits=Height[0.5:1)
pdal translate 54001640PAN_heightasz.bpf 54001640PAN_heightasz_1-2.bpf -f range --filters.range.limits=Height[1:2)
pdal translate 54001640PAN_heightasz.bpf 54001640PAN_heightasz_2-5.bpf -f range --filters.range.limits=Height[2:5)
... etc.

Let’s remove our echo statement so this actually runs:

for START in 0:0.5 0.5:1 1:2 2:5 5:10 10:15 15:20 20:35 35:50 50:75 75:100 100:200
 do
  nameend=`echo $START | sed s/:/-/g`
  pdal translate 54001640PAN_heightasz.bpf 54001640PAN_heightasz_$nameend.bpf -f range --filters.range.limits="Height[$START)"
done

We should generalize this a bit too. Let’s make this a script to which we can pass our filenames and ranges:

#!/bin/bash
namer=`basename $1 .bpf`
for START in $2
 do
  nameend=`echo $START | sed s/:/-/g`
  pdal translate $namer.bpf $namer"_"$nameend".bpf" -f range --filters.range.limits="Height[$START)"
done

Which to run, we use a statement as follows:

./tree_slicer.sh 54001640PAN_heightasz.bpf "0:0.5 0.5:1 1:2 2:5 5:10 10:15 15:20 20:35 35:50 50:75 75:100 100:200"

I forgot all my data is in feet, but my height classes in meters, so we’ll just multiply our input values by a factor of 3 to get in the same ballpark (future refinement likely):

./tree_slicer.sh 54001640PAN_heightasz.bpf "0:1.5 1.5:3 3:6 6:15 15:30 30:45 45:60 60:105 105:150 150:200"

We could alternatively stick to our original categories (short shrub, tall shrub, sub-canopy, canopy) as our break points:

./tree_slicer.sh 54001640PAN_heightasz.bpf "0:1.5 1.5:6 6:30 30:45 45:200"

Finally, we can convert to laz, and load all our slices of point clouds in plas.io an animate between the slices

for OUTPUT in $(ls *.bpf); do docker run -v /home/gisuser/test/test:/data pdal/master pdal translate //data/$OUTPUT //data/$OUTPUT.laz; done

If you look closely, you should be able to see where a tornado in the 80s knocked down much of the forest here. It’s signature is in the tall shrub / sub-canopy layer:

Posted in 3D, LiDAR, Other, PDAL, pointcloud | Tagged: , , | 2 Comments »

Taking Slices from LiDAR data: Part II

Posted by smathermather on February 3, 2016

Ok, with a little help from Bradley Chambers on the PDAL mailing list, we are back in business. If we want to filter our newly calculated heights into a new PDAL output, we can do that easily, say all points 100-500 above ground level:


pdal translate 54001640PAN_heightasz.bpf 54001640PAN_heightasz_gt100.bpf -f range --filters.range.limits=&quot;Height[100:500]&quot;

A little sanity check to see if we are getting appropriate values:

pdal info --stats 54001640PAN_heightasz_gt100.bpf --dimensions &quot;Height&quot;
{
  &quot;filename&quot;: &quot;54001640PAN_heightasz_gt100.bpf&quot;,
  &quot;pdal_version&quot;: &quot;1.1.0 (git-version: 64c722)&quot;,
  &quot;stats&quot;:
  {
    &quot;statistic&quot;:
    [
      {
        &quot;average&quot;: 105.8738232,
        &quot;count&quot;: 179909,
        &quot;maximum&quot;: 194.5800018,
        &quot;minimum&quot;: 100,
        &quot;name&quot;: &quot;Height&quot;,
        &quot;position&quot;: 0
      }
    ]
  }
}

Ok, now I want to view this. I could convert to a *.laz file and view it with plas.io (as long as I use Chrome as my browser).
I have to switch back to docker, ’cause that’s where I have PDAL built with laszip:

docker run -v /home/gisuser/test:/data pdal/master pdal translate //data/54001640PAN_heightasz_gt100.bpf //data/54001640PAN_heightasz_gt100.laz

And now I can view in plas.io:

Screen Shot 2016-02-03 at 9.57.23 PM

Posted in 3D, Other, PDAL | Tagged: , , | Leave a Comment »
